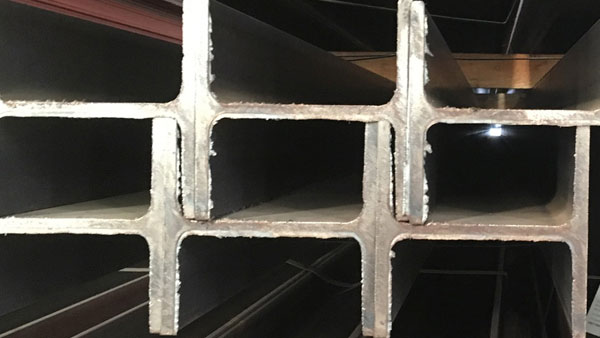

HE B Profiller
| Yükseklik: | 100 mm ile 1000 mm aralığında |
| Standart boy: | 12 metre |
| Boy toleransı: | -0/+100 mm |
| Kalite: | S 275 JR - S 355 JR |
| Üretim Aralığı: | 100 mm ile 1000 mm aralığında |
| Kesit Section | G kg/m | h mm | b mm |
s mm |
t mm | r mm | Kesit, F cm2 | G cm | |||||
| HEB 100 | 20,40 | 100 | +3/-2 | 100 | +4/-1 | 6 | ± | 0,7 | 10 | +2,5/-1,5 | 12 | 26,0 | 20,40 |
| HEB 120 | 26,70 | 120 | +3/-2 | 120 | +4/-2 | 6,5 | ± | 0,7 | 11 | +2,5/-1,5 | 12 | 34,0 | 26,70 |
| HEB 140 | 33,70 | 140 | +3/-2 | 140 | +4/-2 | 7 | ± | 1,0 | 12 | +2,5/-1,5 | 12 | 43,0 | 33,70 |
| HEB 160 | 42,60 | 160 | +3/-2 | 160 | +4/-2 | 8 | ± | 1,0 | 13 | +2,5/-1,5 | 15 | 54,3 | 42,60 |
| HEB 180 | 51,20 | 180 | +3/-2 | 180 | +4/-2 | 8,5 | ± | 1,0 | 14 | +2,5/-1,5 | 15 | 65,3 | 51,20 |
| HEB 200 | 61,30 | 200 | +4/-2 | 200 | +4/-2 | 9 | ± | 1,0 | 15 | +2,5/-1,5 | 18 | 78,1 | 61,30 |
| HEB 220 | 71,50 | 220 | +4/-2 | 220 | +4/-4 | 9,5 | ± | 1,0 | 16 | +2,5/-1,5 | 18 | 91,0 | 71,50 |
| HEB 240 | 83,20 | 240 | +4/-2 | 240 | +4/-4 | 10 | ± | 1,5 | 17 | +2,5/-1,5 | 21 | 106,0 | 83,20 |
| HEB 260 | 93,00 | 260 | +4/-2 | 260 | +4/-4 | 10 | ± | 1,5 | 17,5 | +2,5/-1,5 | 24 | 118,0 | 93,00 |
| HEB 280 | 103,00 | 280 | +4/-2 | 280 | +4/-4 | 10,5 | ± | 1,5 | 18 | +2,5/-1,5 | 24 | 131,0 | 103,00 |
| HEB 300 | 117,00 | 300 | +4/-2 | 300 | +4/-4 | 11 | ± | 1,5 | 19 | +2,5/-1,5 | 27 | 149,0 | 117,00 |
| HEB 320 | 127,00 | 320 | +4/-2 | 300 | +4/-4 | 11,5 | ± | 1,5 | 20,5 | +2,5/-2 | 27 | 161,0 | 127,00 |
| HEB 340 | 134,00 | 340 | +4/-2 | 300 | +4/-4 | 12 | ± | 1,5 | 21,5 | +2,5/-2 | 27 | 171,0 | 134,00 |
| HEB 360 | 142,00 | 360 | +4/-2 | 300 | +4/-4 | 12,5 | ± | 1,5 | 22,5 | +2,5/-2 | 27 | 181,0 | 142,00 |
| HEB 400 | 155,00 | 400 | +4/-2 | 300 | +4/-4 | 13,5 | ± | 1,5 | 24 | +2,5/-2 | 27 | 198,0 | 155,00 |
| HEB 450 | 171,00 | 450 | +5/-3 | 300 | +4/-4 | 14 | ± | 1,5 | 26 | +2,5/-2 | 27 | 218,0 | 171,00 |
| HEB 500 | 187,00 | 500 | +5/-3 | 300 | +4/-4 | 14,5 | ± | 1,5 | 28 | +2,5/-2 | 27 | 239,0 | 187,00 |
| HEB 550 | 199,00 | 550 | +5/-3 | 300 | +4/-4 | 15 | ± | 1,5 | 29 | +2,5/-2 | 27 | 254,0 | 199,00 |
| HEB 600 | 212,00 | 600 | +5/-3 | 300 | +4/-4 | 15,5 | ± | 1,5 | 30 | +2,5/-2,5 | 27 | 270,0 | 212,00 |
| HEB 650 | 225,00 | 650 | +5/-3 | 300 | +4/-4 | 16 | ± | 1,5 | 31 | +2,5/-2,5 | 27 | 286,0 | 225,00 |
| HEB 700 | 241,00 | 700 | +5/-3 | 300 | +4/-4 | 17 | ± | 1,5 | 32 | +2,5/-2,5 | 27 | 306,0 | 241,00 |
| HEB 800 | 262,00 | 800 | +5/-5 | 300 | +4/-4 | 17,5 | ± | 1,5 | 33 | +2,5/-2,5 | 30 | 334,0 | 262,00 |
| HEB 900 | 291,00 | 900 | +5/-5 | 300 | +4/-4 | 18,5 | ± | 1,5 | 35 | +2,5/-2,5 | 30 | 371,0 | 291,00 |
| HEB1000 | 314,00 | 1000 | +5/-5 | 300 | +4/-4 | 19 | ± | 1,5 | 36 | +2,5/-2,5 | 30 | 400,0 | 314,00 |
